This system features a 900×1100×1000mm internal chamber with fast heating capability—reaching 300°C in under 50 minutes—and a working temperature range of room temperature to 400°C, with temperature uniformity within ±5°C and fluctuation as low as 0.5°C. Vacuum levels range from 100kPa to 0.1kPa, with integrated oxygen concentration control down to 50ppm, regulated by automatic vacuum pump activation. A built-in flow meter (0–100L/min) with pressure-reducing valve supports precise gas control. The cold trap tank automatically vents and drains when the pump stops, while the water-cooled door seal and front-stage condensation filter prevent powder ingress into the vacuum pump. Additional features include a buzzer alarm and digital pressure sensor for enhanced safety and process monitoring.

For more customized cases, please click here to see details. Or you could contact us (eshop.lab1st.com) for more information.

Features:

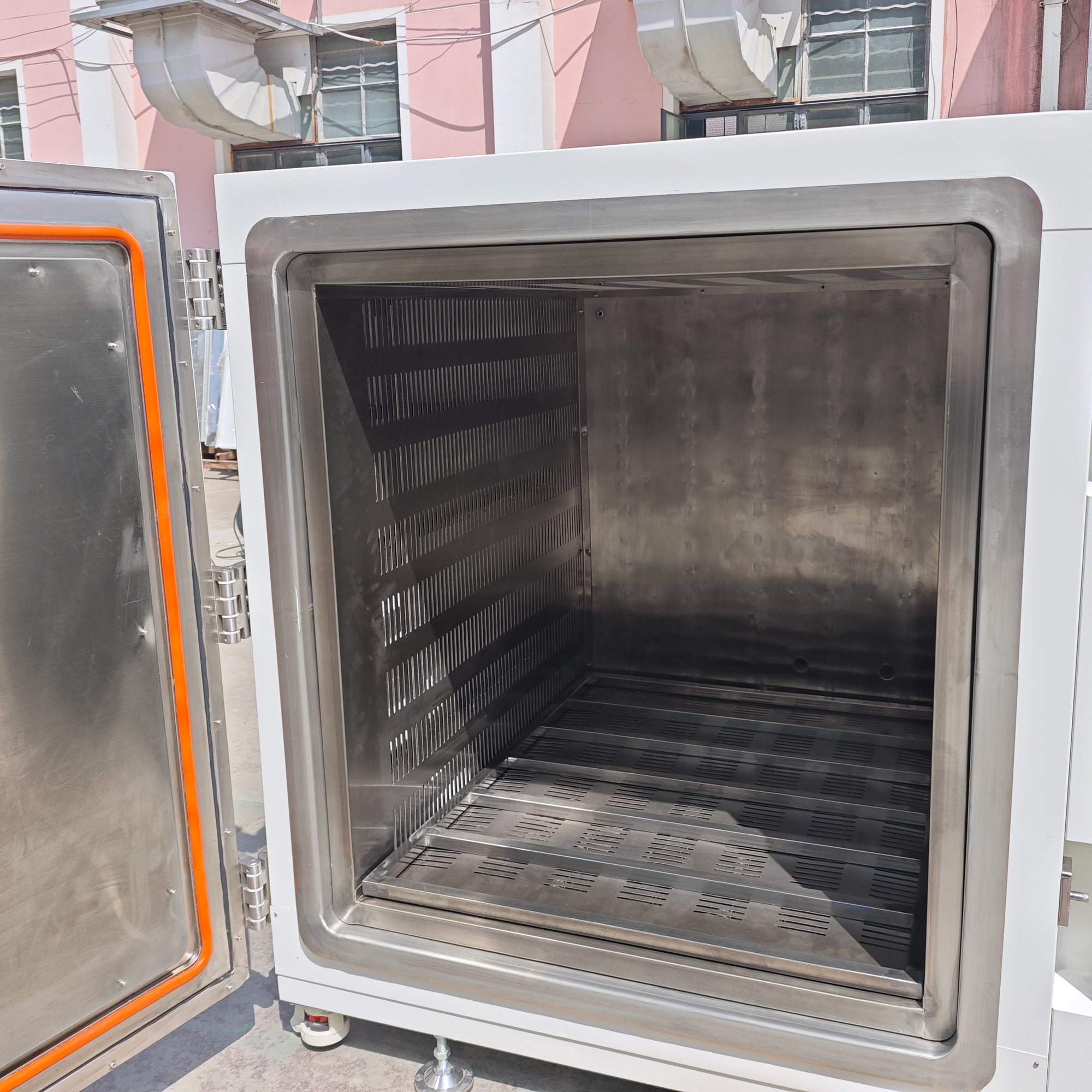

• Internal Dimension [W×D×H]: 900×1100×1000mm

• When the vacuum pump stops, the cold trap tank releases the vacuum, and the bottom electric valve automatically drains the liquid
• The heating rate is less than 50 minutes to 300℃

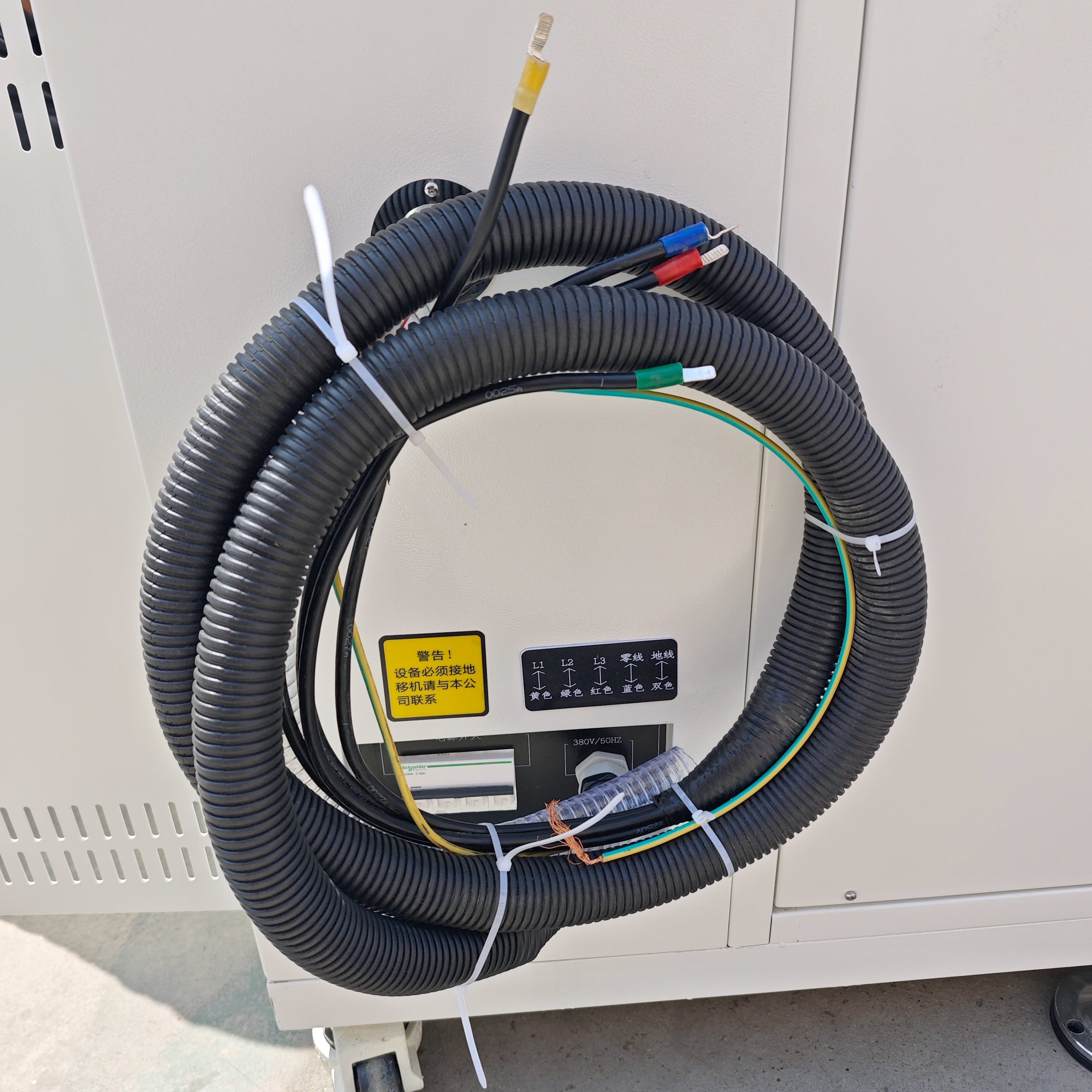

• Total power: heating 22KW + pump 1.5KW
• This machine is based on controlling oxygen concentration as the main indicator
• Temperature range: RT~400℃, Common temperature 300℃, uniformity ±5℃, temperature fluctuation: 0.5℃

• Vacuum degree: limit 100Kpa~0.1KPa

• Oxygen concentration: 50ppm (customers use exhaust to achieve oxygen concentration control), oxygen concentration control: when set to 50ppm, the vacuum pump starts and stops exhausting when it reaches the set value.

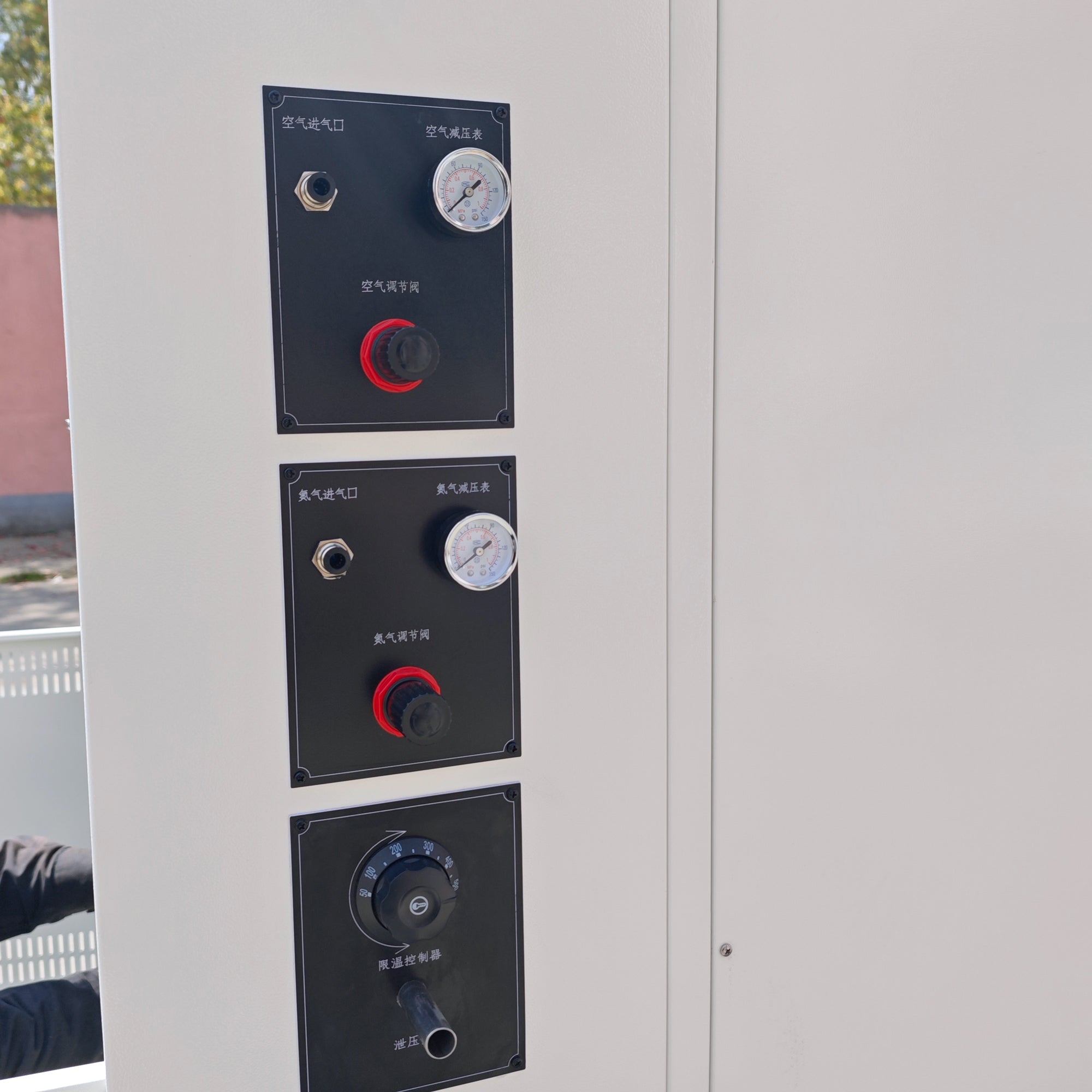

• Flow meter: 0~100L/min (with pressure reducing valve)

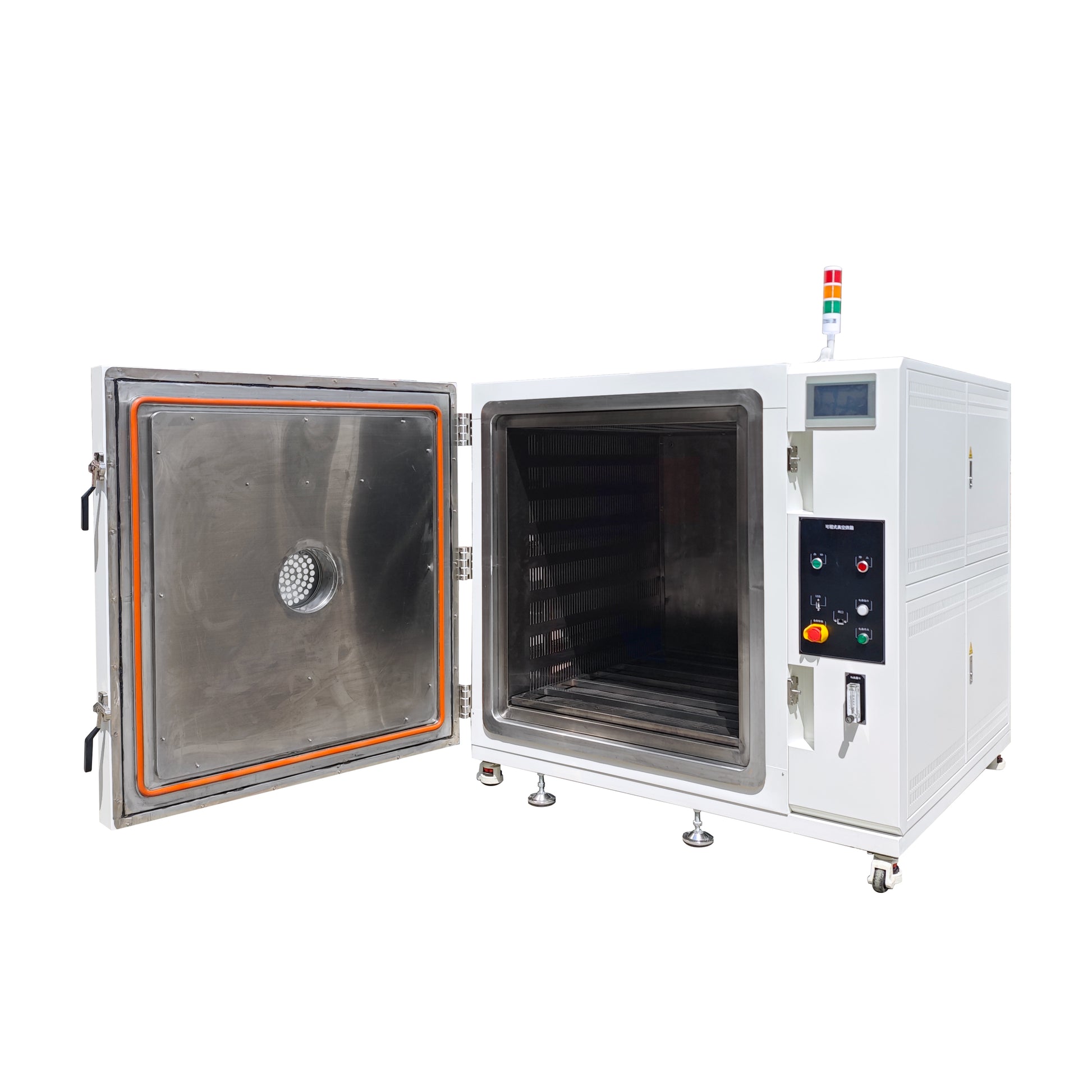

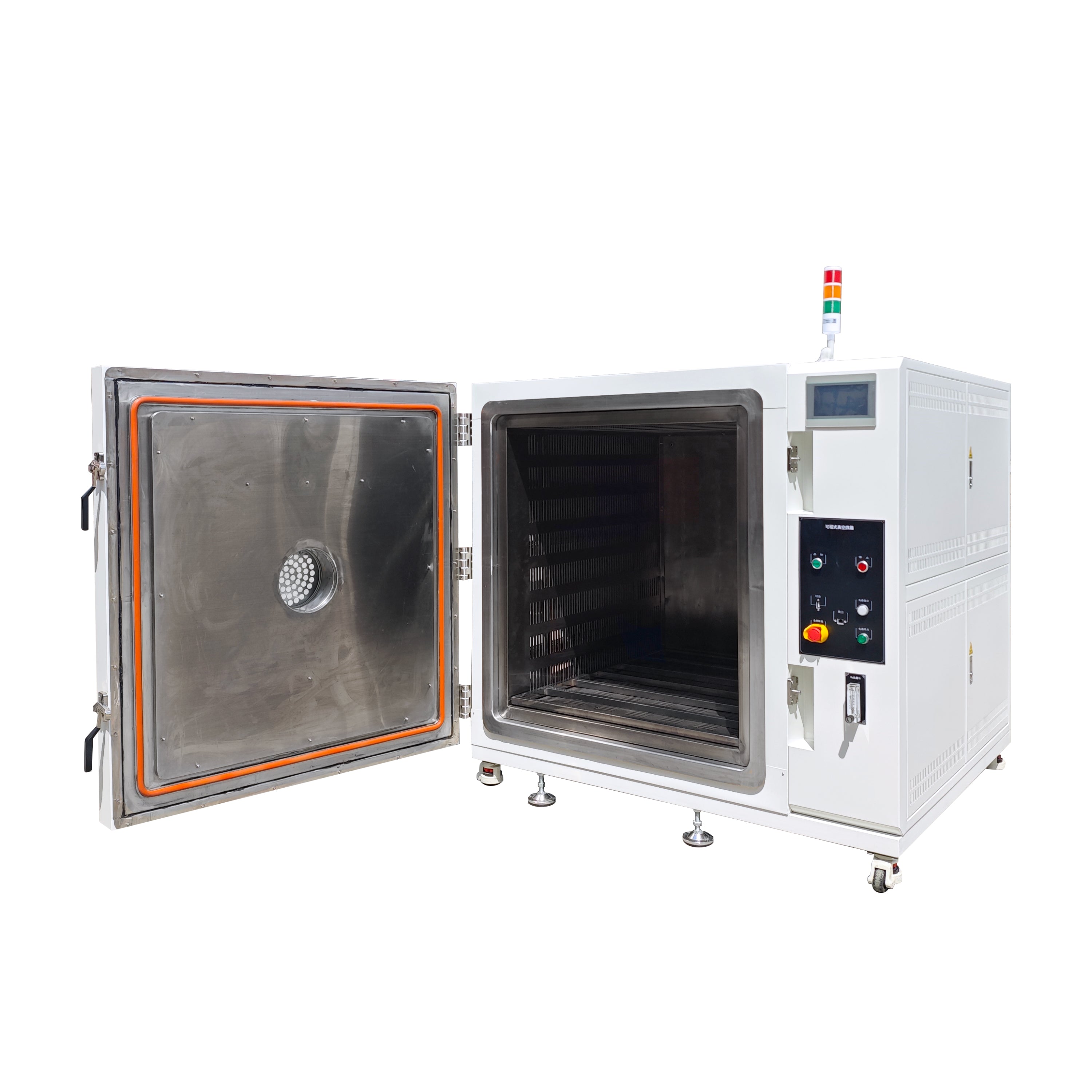

• The door seal has water cooling function, the vacuum pump has a front-stage condensation filter to remove powder and not allow it to enter the vacuum pump, with buzzer alarm function, digital pressure sensor
