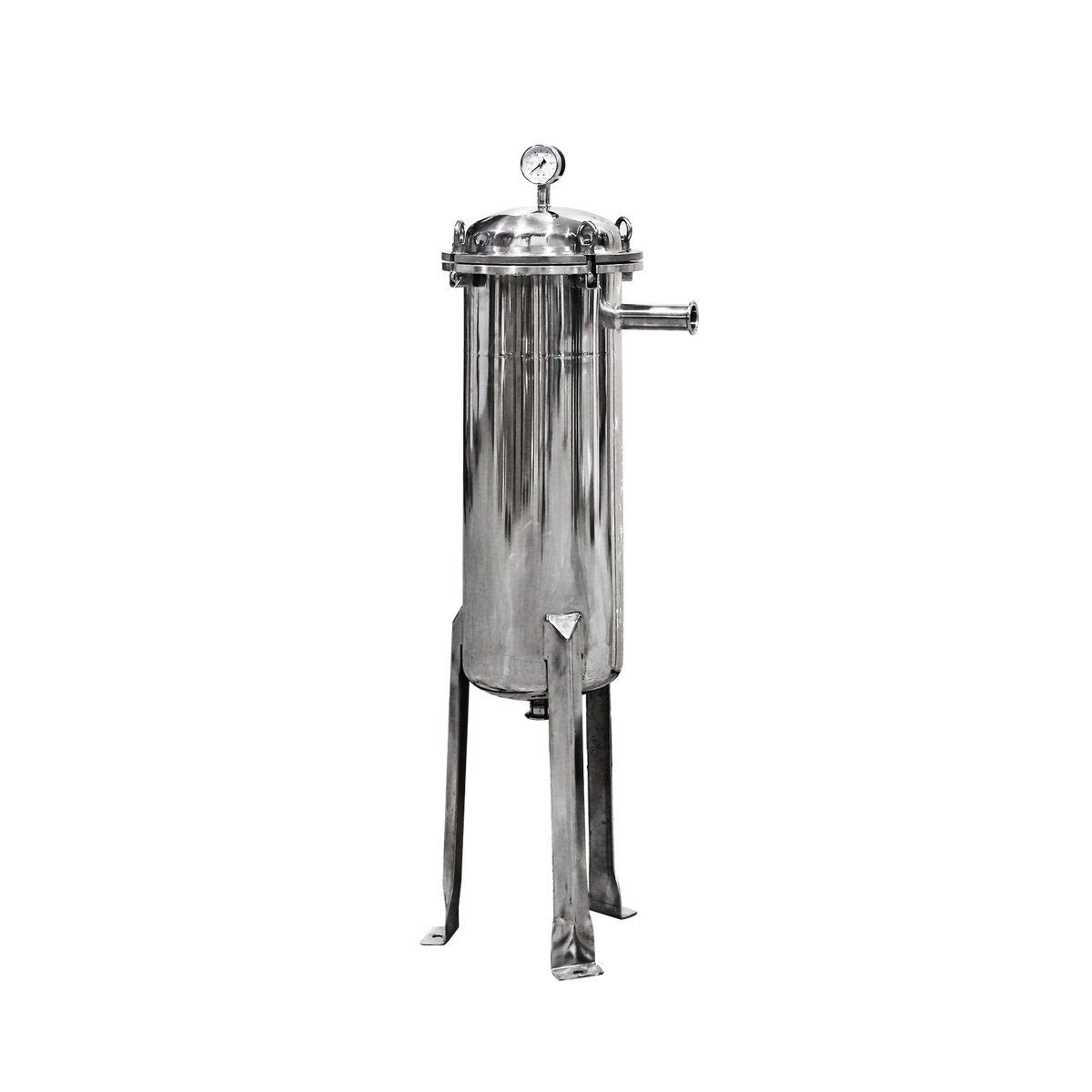

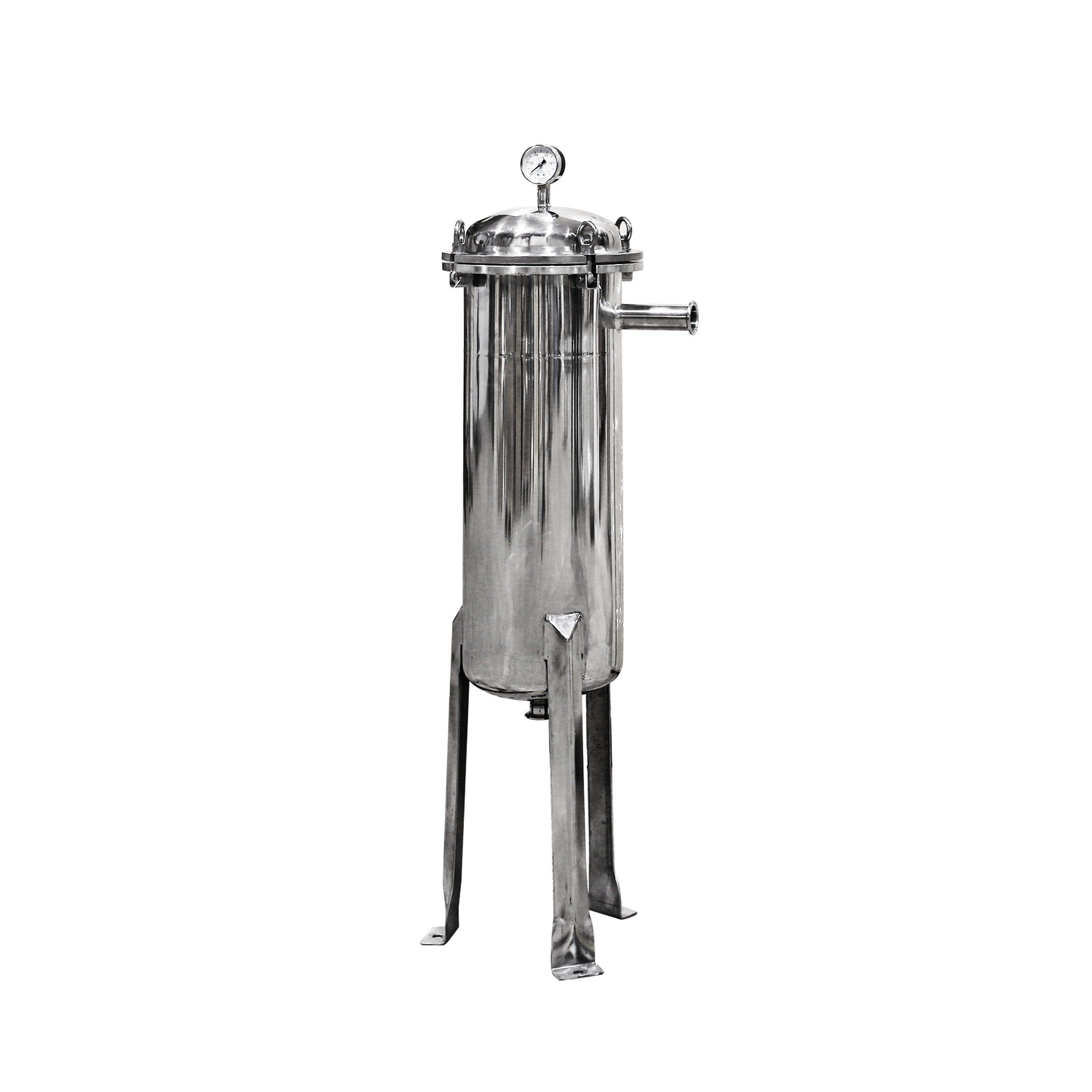

10um Pore Size Side-Entry Bag Filter
Got questions?
Feel free to get in touch
Couldn't load pickup availability
Side-entry bag filter with single filter bag is for some coarse filtration and pre-filtration process. Side entry structure is a economical and reasonable design which can effectively save space of the filter. Furthermore, pressure ring and the spring ensure good seal between the filter and the filter bag. With adjustable legs, the installation size can be adjusted according to the requirements of the particular spot.
Specification:
- Model: SBF-1
- Design Pressure: 1.0 MPa
- Max. Working Pressure: 0.6 MPa
- Max. Working Temperature: 150 ℃
- Min. Working Temperature: Around -40℃
- Max. Flow: 20m³/h
- Filter Hole Diameter: 10um（1~200μm customizable）
- Total Height [mm]: 990
- Length [Inlet to Center, mm]: 147
- Shell Diameter [mm]: 204
- Hight [Inlet to Ground, mm]: 835
- Hight [Outlet to Ground, mm]: 250
- Adjustable Support Height [mm]: 500
- Fluid Inlet/Outlet Interface: 50.5 Tri-clamp
- Vacuum Gauge Interface: M14 X 1.5
- Deflation Valve: 1/4 in
- Shell Material: 304/316L
- Eyebolt Material: 304
- Adjustable Support: 304
- Sealing/ Gasket Material: EPDM, PTFE, Viton, Silicone
